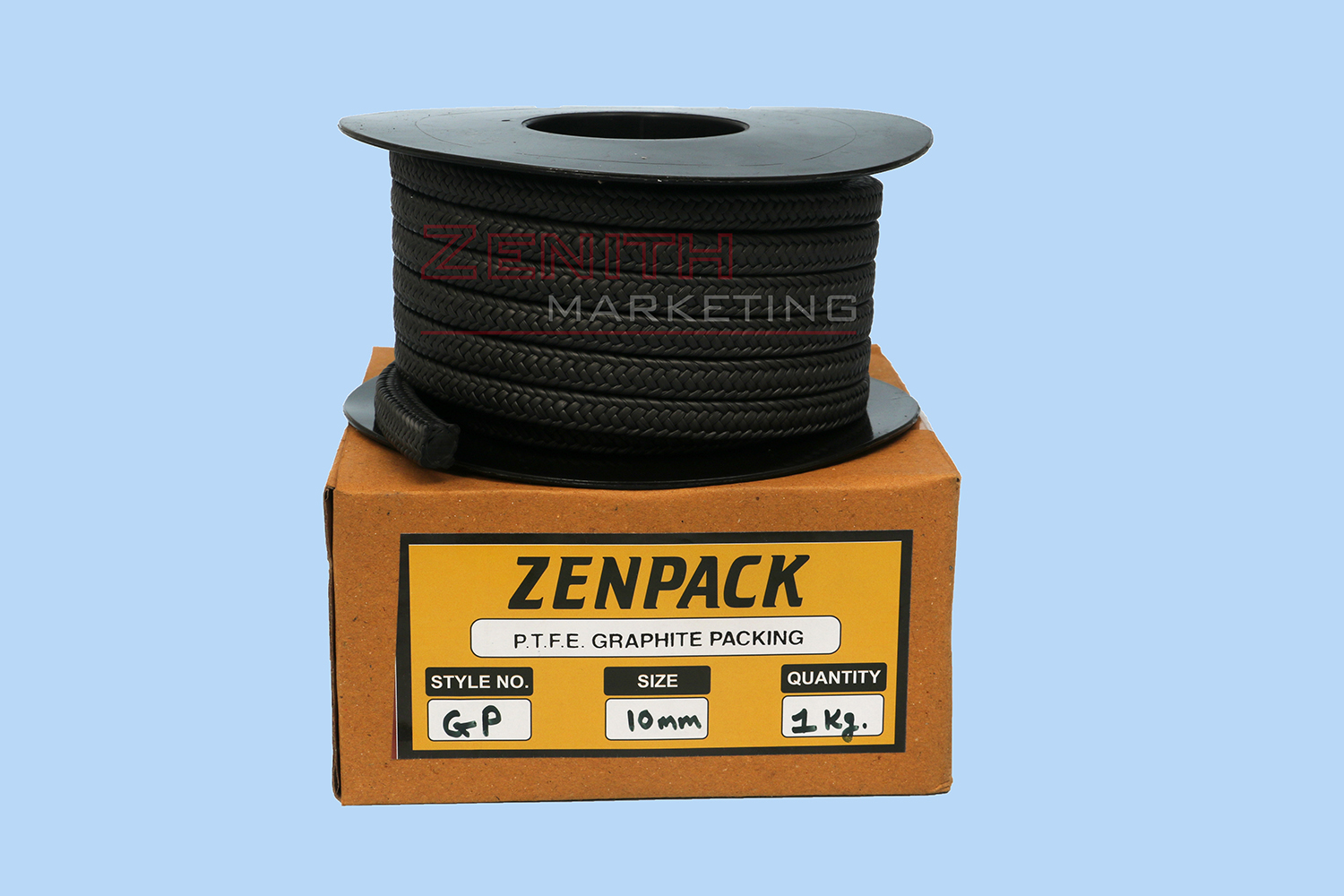

PTFE GRAPHITE PACKING ( ZENPACK STYLE GP)
Construction :
Braided packing made from PTFE, graphite and an inert high temperature lubricant.Application :
A cost effective and ideal replacement for asbestos based packing. It is non toxic, self lubricating and chemically inert and hence can be used against almost all media. It is highly flexible and hence it is easy to install. Widely used for moderate speed rotary application in all type of industries. It is also used in static applications.Available SIze :
- From 6mm to 45mm.
Service Parameters :
| Temp. (*C) | -240 to 280 |
| Pressure (kg/cm²) | 200 |
| pH Range | 0-14 |
| Velocity (mtrs/sec) | 10 |
Standard Packing :
| 6mm to 14mm | 1 Kg |
| 16mm to 19mm | 2 Kg |
| Above 19mm | 5 Kg |
* We can also supply custom size/length as per customer’s requirements
