Construction :

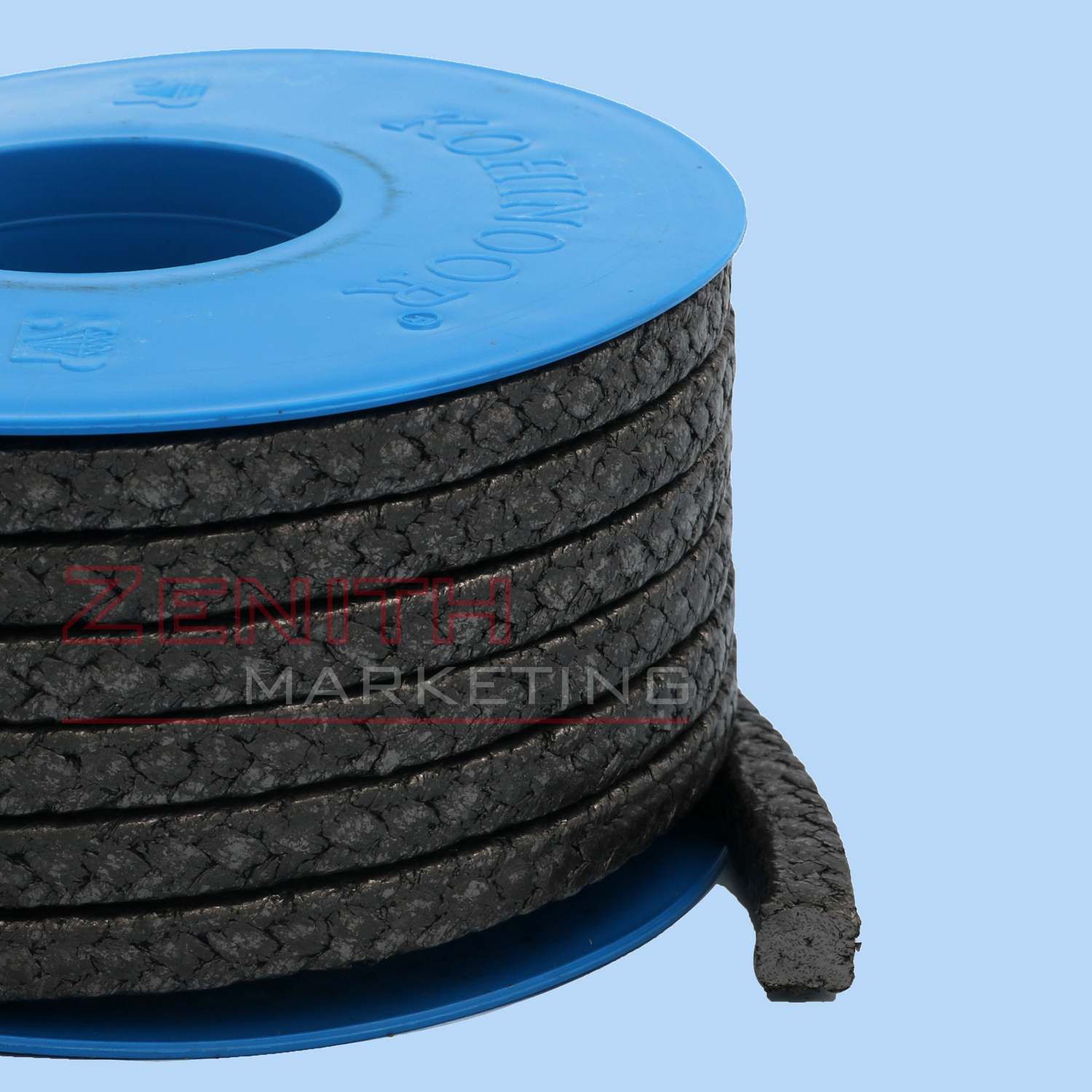

Expanded Graphite Packing is diagonally braided from pure expanded flexible graphite yarn, impregnated with PTFE dispersion.
Application :
Very flexible and supple packing, excellent alternative to pre-formed graphite-rings. The benefits of this packing are low friction and excellent thermal conductivity. It can be used with steam, water, oils, alkalies, acids, solvents, paints, varnishes on graphite pumps and graphite valve packing in high temperature and high pressure environments prevailing in power plants, boiler houses, refineries, steel mills, petrochemicals industries, etc.
Available SIze :
- From 3mm to 45mm.
Service Parameters :
| Temp.(*C) | -240 to 650 °C |
| Pressure (kg/cm²) | 300 |
| pH Range | 0-14 |
| Velocity (mtrs/sec) | 25 |
Standard Packing :
| 3mm to 5mm | 1/2 Kg |
| 6mm to 14mm | 1 Kg |
| 16mm to 19mm | 2 Kg |
| Above 19mm | 5 Kg |
* We can also supply custom size/length as per customer’s requirements
